Dynafit Anti Twist for Radical Binding – PN 48684 – Installation


Post by WildSnow.com blogger | July 30, 2012

Dynafit has an available OEM “rotation lock,” “anti twist” part you can install on your Radical series bindings to prevent counter-clockwise rotation (“auto rotaton”) when the heel unit is in the climbing position. Click the following “read more” link to view a how-to image from Dynafit, or you can download a PDF here. The item is part number 48684 and can be obtained from Salewa North America

Salewa Dynafit made these instructions available some time ago, but folks have had a bit of trouble finding them,  so I'll make a blog post out of it that'll be easy to google.

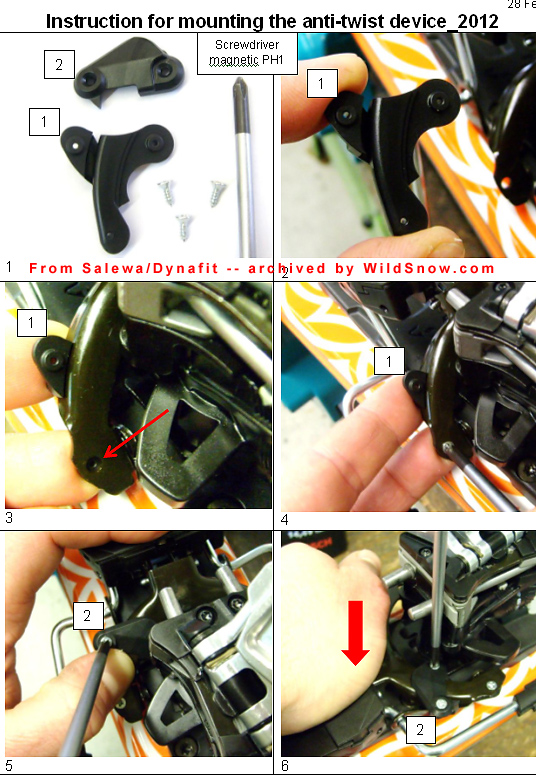

Salewa Dynafit made these anti-twist rotation lock installation instructions available some time ago, but folks have had a bit of trouble finding them, so I'll make a blog post out of it that'll be easy to google.


Comments

29 Responses to “Dynafit Anti Twist for Radical Binding – PN 48684 – Installation”

  1. Tom Gos July 30th, 2012 6:29 pm

    Should (does?) Salewa just hire Maruelli to design/engineer/manufactuer this stuff? I believe this is the second Maruelli product design to find it’s way to Dynafit – the first being the flip-up heel lifter featured on the Radical bindings.

  2. Lou Dawson July 30th, 2012 8:59 pm

    Tom, I know for a fact that they talk quite a bit. Who knows the inner workings of the great Salewa….

    Maruelli is a super bright guy, very friendly. I enjoyed getting together with him last winter and messing around with his Natural Walking Plate.

  3. James Broder July 30th, 2012 9:10 pm

    I obtained a couple of these kits from Salewa at the beginning of the summer. Very easy to install, took me about 10-12 minutes per pair of skis.

    The devices seem to work fine, although they are dinky little things made of molded plastic, not metal, so I’m not optimistic they will last.

    I still plan on picking up a couple of pairs of Stefano’s devices when I get back to Europe, because Stefano’s version is made from metal and look like they can take some abuse.

  4. Mark W July 30th, 2012 10:51 pm

    I obtained a few of these for my shop this past spring, and yes, they’re simple and minimalist in design–likely the lightest option for anti-twist. Wish we had more real-world test beta, but I guess that will have to come next.

  5. omr August 1st, 2012 11:33 pm

    So, how necessary is the retrofit? I’ve used the Radicals for one season (35 days) with no problems. In fact, I prefer them to my TLT-Verts. It’s now mid summer and I’m pretty sick of listening to OCD, gear-head bikers bragging on spending thou$$ands to shave a few grams. Is the Radical retro-fit just another OCD fixation?

  6. Rod August 2nd, 2012 8:20 am

    Does anyone know if the radical will have any other fixes for next year?

  7. Lou Dawson August 2nd, 2012 2:22 pm

    Rod, we’ve been covering everything for some time, but not sure I ever made a list. I’ll probably miss something, but here are the changes I can remember. Most of these or perhaps all have already been done “inline.”

    – Improved heel AFD to prevent loss of spring.
    – Defective metal under heel lifter should be history.
    – Rotation lock pin changed to improved version, and binding supplied with anti-rotation fitting for the brake retractor plate.

    Busy at OR show, probably forgetting something, anyone else care to chime in?

  8. David August 5th, 2012 9:20 am

    Any word on a solution for the Radical Speed (sans brakes)?

  9. Lou Dawson August 5th, 2012 3:08 pm

    Maruelli sells a version that doesn’t need the brake installed for it to function.

    http://www.wildsnow.com/6859/anti-twist-dynafit-radical/

  10. David August 5th, 2012 4:48 pm

    Thank Lou, but it doesn’t appear anywhere on his website…when you click on the URL for radial speed upgrade you get the walking plate.

    http://www.maruelli.com/RADICAL%20UPGRADE/DYANAFIT%20RADICAL-SPEED%20UPGRADE.htm

    Also I guess I was asking if Dynafit will have an OEM offering for the speed radial or not

  11. bfly August 15th, 2012 12:14 pm

    So the million dollar question, “Do you remove the anti-rotation pin when using the anti-twist device?”

  12. Lou Dawson August 15th, 2012 1:14 pm

    I’d remove it, but it’s optional.

  13. Lou Dawson August 15th, 2012 1:16 pm

    All, I’m noticing some political ads that Google is filling our ad spaces with. We’re not picking those and I’ll work on banning them. Just thought you guys should know, so we don’t get in trouble from either side of the fence!

  14. Phil September 27th, 2012 11:57 am

    Back to the rotation problem…
    I’m thinking about buying a pair of Radical Speeds this year – but don’t know if that is a good idea if the rotation will be a pain…

    I haven’t seen any hint of a Dynafit fix for the rotation/pin problem in the Radical heel for the many people who choose not to use brakes (e.g., Radical Speed or just removing the brake from the other models).

    Other than simply removing the pins and putting up with any rotation when it happens, I’ve only heard about the aftermarket option from Maruelli, but that won’t be something accessible by many people.
    One would think Dynafit would have an option that was likely a warranty fix… but Lou would likely have heard of that by now…

    Perhaps a return to the old, time-tested non-round cylinder?

  15. John Gloor February 8th, 2013 2:47 pm

    I just logged on this old thread to get the instructions for installing the anti-twist part which arrived today. Salewa got it to me quickly after I called them this week. They are a workable solution as long as one uses brakes. Now what is the protocol for dealing with the defective metal in the heel lifts? Is that something one can be proactive about, or wait until they break?

  16. Lou Dawson February 8th, 2013 3:05 pm

    John, I’m not sure. It’s about the vintage of the binding, if you bought them quite a while ago you might want to talk to Dynafit. Lou

  17. John Gloor February 9th, 2013 8:18 am

    I bought them as soon I they came out, so they are an early model. I will probably ski them and deal with any breakage as it happens

  18. Mark Flaming March 2nd, 2013 6:50 pm

    To John Gloor’s question about the heel lifts on the radicals. This just looks like bad design. Take that top plate off and look how that little plastic plate is designed to hold the pin that anchors the heel lifters. My top plate snapped under the pressure when one of the screws backed out far enough for the plate to flex under the weight of the loaded lifters. The top plate should be metal. Overall, the vertical has been a less complicated binding and it looks to me like its design will outlast the radical.

  19. Lou Dawson March 2nd, 2013 7:03 pm

    Like I’ve said many times Vertical FT 12 with Power Blocks under toe is definitely at the all-time top of the list. ST 10 isn’t too shabby either.

  20. Bar Barrique March 2nd, 2013 9:51 pm

    Yes Lou; I agree. The FT/ST bindings are very good, virtually bullet proof, and, extremely durable. I have no interest in the “Radical” bindings. Dynafit is driving me into the “arms” of other “tech’ binding manufacturers.
    Long time Dynafit users have been waiting for a lighter model based on the original concept, but, all we get are models designed to please the marketing guys who only think about new customers, and, take the old customers for granted.

  21. Lou Dawson March 3rd, 2013 6:25 am

    Bar, be sure to call them the “Vertical” bindings. The Radicals are also FT/ST.

  22. Bar Barrique March 3rd, 2013 10:35 pm

    Thanks Lou, for the terminology assistance. After all; if you’re going to “rant”, you want to name things correctly.

    Cheers;

    Bar

  23. Mark Flaming March 8th, 2013 12:18 pm

    Update: my friend just suffered the same heel lifter failure on the radicals that I described above.

    I suspect that they fail when the top plate screws back out and the top plate flexes. There may be some prevention value in keeping them snug. Be careful because they strip easily, another design feature that could be improved.

    This top plate takes all of the pressure from the weight on the lifters. Call me old fashioned but why isn’t it metal with tapped screws?

  24. Lou Dawson March 8th, 2013 1:25 pm

    Mark, sorry to hear that, during the whole history of the Radical binding we’ve heard reports of lifter breakage. Of course, that happened with the Vertical series bindings as well. We have no idea if the frequency of breakage with Radical is more or less than that of the Vertical. Thing is, however, the Vertical breakage was usually caused by human error, while the Radical breakage is either a materials or design defect, or perhaps a combination of both where the design can’t handle minor variations in material strength. Also, good point about the screws. They shouldn’t be backing out, if they are something is wrong as we’ve not seen that here and we’ve been running multiple pairs of Radicals for a while now. Lou

  25. Larry April 22nd, 2013 12:58 am

    Anyone know if the Dynafit antitwist device can be placed on the Comfort model brakes -(and will it work? ) The heel rest platform in the lowest mode is a bit different on the Comfort.

  26. Kyle January 22nd, 2015 11:20 pm

    You guys are so totally rad, this was insanely helpful.

  27. Dragos Toma January 25th, 2017 5:07 am

    Hey Guys,

    Just had a Radical ST10 first gen breakage of a heel unit last season. It cracked due to the anti-rotation pin.

    I contacted Dynafit and they sent me replacement parts under warranty and the new antirotation device which I installed on the brakes.

    The only thing I have doubts with is that they only sent me 1 heel unit. My other remaining heel unit is fine with no cracks in it. But the new heel unit I received has substantially more plastic width at the base of the tower.
    Question is if it is safe to use the newer version of heel with my older heel on the other ski(since it doesn’t have any cracks in it).

  28. Lou2 January 25th, 2017 7:05 am

    Dragos, you need to replace BOTH heels. This is ancient history from year 2011 … Lou

    https://www.wildsnow.com/6442/dynafit-radical-recall-repair/

    Lou

  29. Dragos Toma January 25th, 2017 10:26 am

    Thanks for the info Lou.
    I’ll try to contact them to see what happened to the other heel unit I was supposed to receive from my local dealer. I received 2 of the newer antirotation locks but only 1 new heel unit.

    Sorry for digging this up, but the new ST/FT2.0 is a little out of my budget for now and I want to see if maybe I can get my old bindings back to life 🙂
