Wild and Foamy Camper Project – Part 2

by Louie Dawson August 13, 2018
written by Louie Dawson August 13, 2018

Part 1

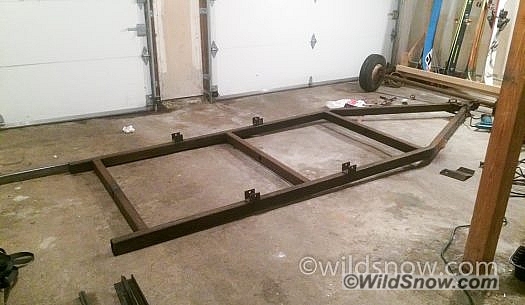

Where it all began. An old rusty frame from a 1972 pop-up camper trailer. Ready for some weldin'

Where it all began. Old rusty frame from a 1972 pop-up camper trailer. Ready for weldin’ and grindin’.

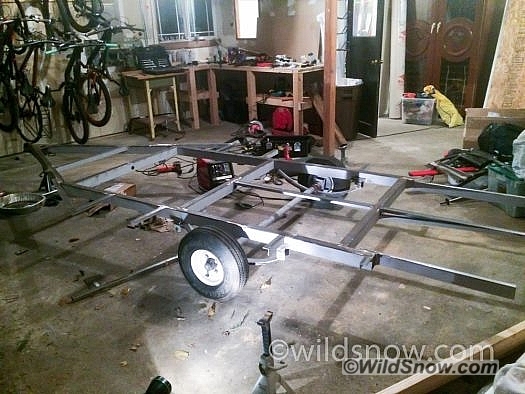

After some work, it looked like this, almost ready to paint. I welded tubes onto the back to make the frame longer, welded angle pieces onto the side to make it slightly wider, and welded new brackets to move the axle backward a little.

After mods it looked like this, almost ready to paint. I lengthened the frame by welding tubes to the back, and welded chunks of steel angle to the sides for a slight increase in width. I moved the axle rearward as well, to maintain the correct location ratios. I have not drive tested the re-done trailer yet, but the distance between axle and hitch appears to be good for a stable non-whipping tow. Trailer math here for anyone interested.

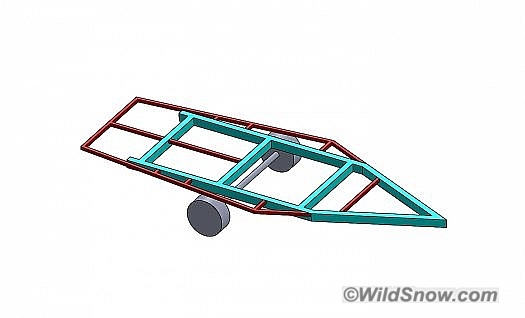

Here's the CAD model showing the floor plan. The blue is the original trailer frame, and the red parts are the portions I welded on. It ended up a bit different in real life, but it's fairly similar.

CAD model showing the floor plan. The blue is the original trailer frame, and the red parts are the portions I welded on. It ended up a bit different in real life, but remains similar.

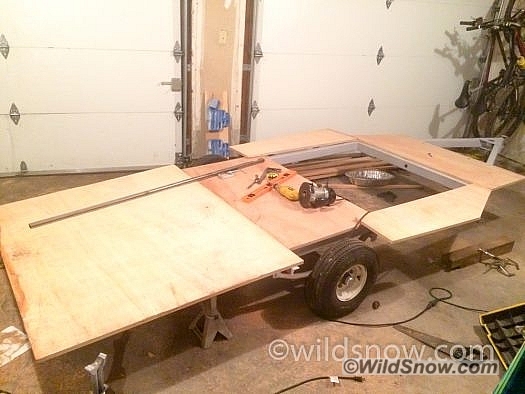

The floor is essentially the only part of this trailer that is susceptible to water damage (it's the only major wood component). To mitigate the risk I used nice 3/4 in marine grade plywood that is painted with several coats of thinned polyurethane. I also painted the bottom with nice exterior paint, and glued the whole thing to the trailer frame with construction adhesive (it's also held on with bolts). After the trailer exterior is finished I'll spray some undercoating underneath as another layer of protection.

The floor is the only part of this trailer that is susceptible to water damage (it’s the only major wood component). To mitigate the risk I used 3/4 inch marine grade plywood that’s painted with several coats of thinned polyurethane. I also painted the bottom with exterior house paint, and glued the whole thing to the trailer frame with waterproof construction adhesive (it’s also attached with bolts). After the trailer exterior is finished I’ll spray undercoating underneath as another layer of protection.

As I was finishing up the trailer frame I began to work on the drop floor. It's built out of xps foam and wood, and then plywood is added to the top and bottom, to create a sort of sandwich construction. I covered the whole thing in canvas and glue to increase the durability and waterproofness.

As I was finishing up the trailer frame I began work on the operable drop floor. It’s built out of xps foam and wood, with plywood added to the top and bottom to create a sort of sandwich construction. I covered the whole thing in canvas and glue to increase the durability and waterproofness.

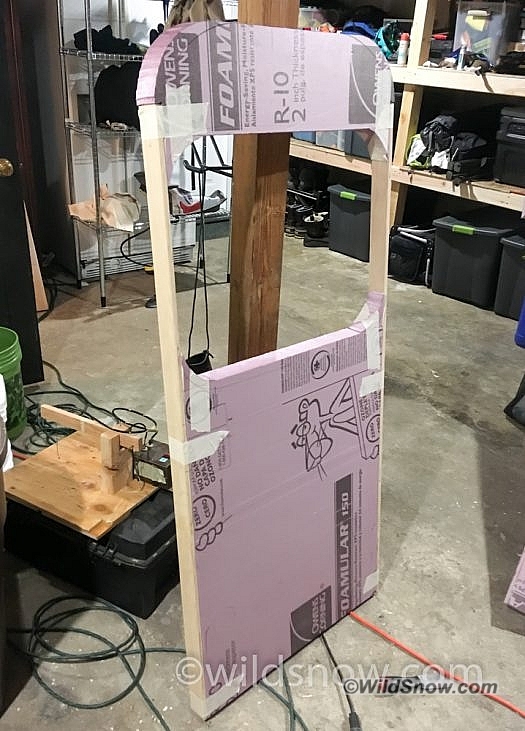

I built the door first, in order to get some practice with the foam and PMF construction. The drop floor construction makes the trailer wall an odd height  (~5ft), so a custom door was needed. It's built out of foam with a minimal wood frame this makes it nice and light, and well insulated.

I built the door first, in order to get some practice with the foam and PMF construction. The drop floor construction makes the trailer wall an odd height (~5ft), so a custom door was necessary (I otherwise would have bought one from the RV salvage yard where I got the windows and a few other parts). It’s built out of foam with a minimal wood frame. This makes it exceptionally light and well insulated.

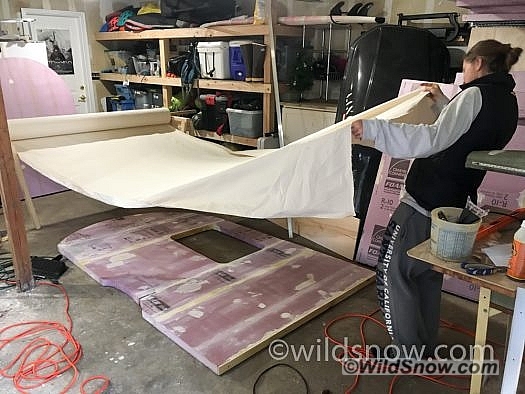

Adding the wood-glue and canvas combo to the exterior of the door.

Adding the wood-glue and canvas combo to the exterior of the door.

The door with one side canvased and painted with primer.

Door with one side canvased and painted with primer.

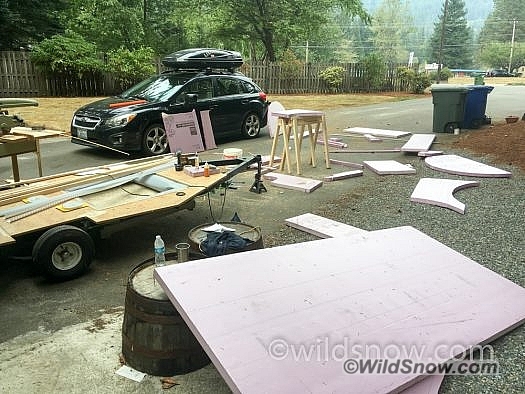

Foam scattered everywhere. Hopefully this isn't what the highway looks like after the first test drive.

Foam scattered everywhere. Hopefully this isn’t what the highway looks like after the first test drive!

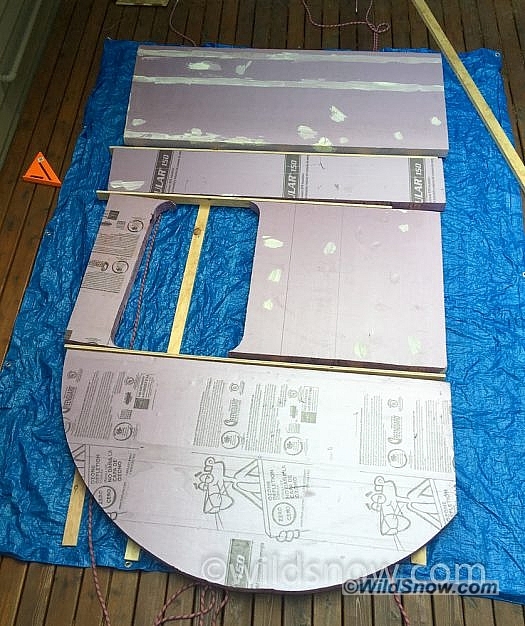

The walls are constructed of several pieces of foam with wood laminated in between. This adds a smidge of strength, while still keeping the wood to a minimum, to increase the water resistance.

The walls are constructed of several pieces of foam with wood ribs laminated in between. This adds a smidge of strength, while still keeping wood to a minimum, to increase the water resistance and reduced weight. The angles of the hexagonal footprint add strength as well. I will be using this on rough dirt roads, during ski touring access, so the stronger the better.

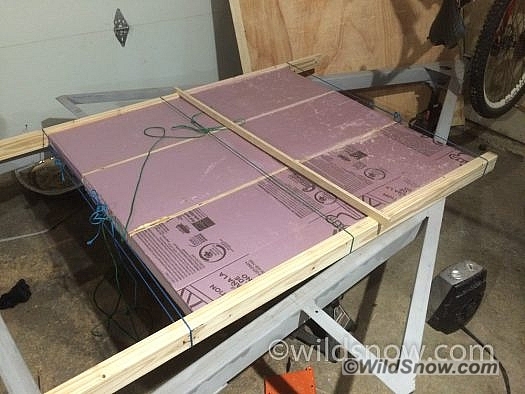

After the wall is glued, we filled in any divots and sanded it smooth, before coating it with the canvas and glue PMF.

After the wall is glued, we fill divots left by various stages of the construction, and sand smooth in preparation for layering with the canvas and glue PMF.

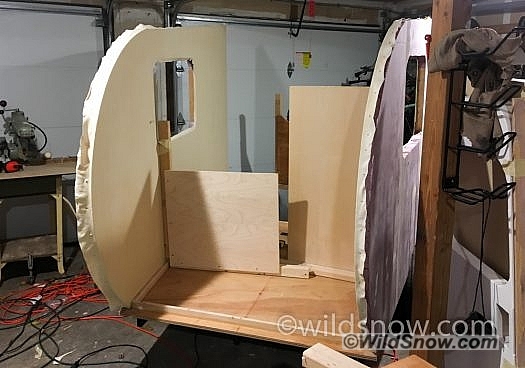

Once the exterior canvas is applied, it will wrap around the bottom of the trailer floor, which will add quite a bit of strength.

Attaching walls to the trailer floor. The walls are attached to the floor with Gorilla Glue, which is fairly strong and totally waterproof. Once the exterior canvas is applied, it will wrap around the bottom of the trailer floor, adding more strength to the wall-floor bond (no wish to glance in the rear view and see the camper box flying away like a bounce house in a tornado). The sheets of plywood visible in the photo are temporary braces. Due to the flexibility of the foam as well as the hexagonal floor plan, squaring the walls to the floor proved to be challenging. I used everything from trigonometry to “eyeballing” during the process.

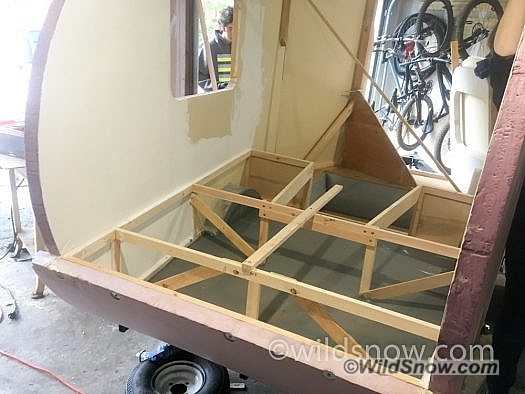

The bed is built with 1x2 wood, to keep it light. The frame is glued and screwed to the foam walls, which adds a significant amount of strength and stiffness to the entire structure.

The bed is built with 1×2 wood, to keep it light. The frame is glued and screwed to the foam walls, which adds a significant amount of strength and stiffness to the entire structure.

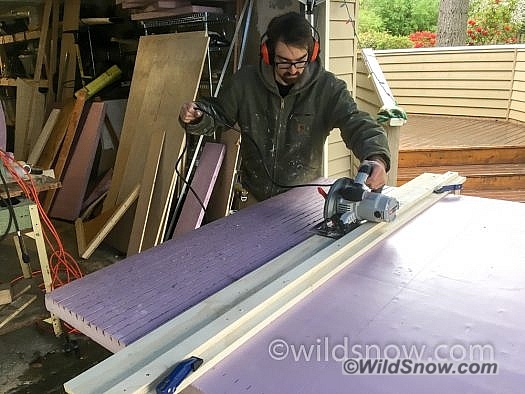

I used a few different methods to cut the foam. One of the best methods is to use a metal cutting blade in a circular saw. Since there aren't any teeth it doesn't create much dust, but cuts easily; the friction of the blade melts through the foam

I use a few different methods for cutting the foam. One of the best tricks is to use a smooth edge diamond cutting blade in a circular saw. Since there aren’t any teeth it doesn’t create much dust, but cuts easily; the friction of the blade melts through the foam.

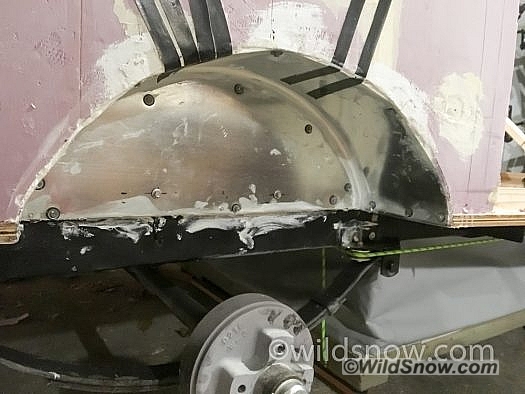

The wheel wells are made out of galvanized steel flashing.

The wheel wells are made from galvanized steel flashing. The visible pulley and cord is part of the drop floor system that raises for ground clearance while accessing locations such as ski touring trailheads.

Louie Dawson

Louie Dawson earned his Bachelor Degree in Industrial Design from Western Washington University in 2014. When he’s not skiing Mount Baker or somewhere equally as snowy, he’s thinking about new products to make ski mountaineering more fun and safe.

www.wildsnow.com
17 comments
0
Email
previous post
Bench Racing the Salomon Atomic SHIFT Ski Binding
next post
Ski Touring News Roundup Mid Aug 2018

17 comments

mike August 13, 2018 - 10:01 am

Great looking project Louie. When it comes to trailer towing tongue weight is important but proper toe-in is the most critical part of having a nice towing trailer.
Just curious what are you going to use for heat?

kilowati August 14, 2018 - 8:57 am

Cool project! I’m excited to see this drop floor in action. That’s an inventive solution.

Mike August 14, 2018 - 11:06 am

If you aren’t already, may want to protect your pulley system that raises and lowers the floor. As is, it looks like it’ll get blasted by road dirt/salt/water/etc. Either way, curious to see how that thing works out. It’s an interesting alternative to a pop-up roof. The major downside seems to be that the mechanism needs to be stronger and stiffer since you stand on it, unlike a pop up roof. Hopefully there is more to it than I can see in the pictures. If not, it’ll be like standing on a swing.

I echo some of Richard’s concerns from part 1. I’ll add that the skin to foam bond is important to the strength of the structure, and that bond can fail gradually over time without it being visibly obvious. About the best you can do is tap on the surface with something hard like a quarter, kind of like how you’d knock on a flake while climbing to see how well it is attached. My point is that relying on that bond is sketchy in the first place, but worse, it could get sketchier over time and fail without warning. A skeleton or outer shell would reduce this risk considerably.

I hope you’ll also consider some test runs down a deserted road at higher than the planned operating speeds to proof load your structure. Obviously no one wants this to happen: https://www.youtube.com/watch?v=FBEuXeny7pA

Anyway, sorry to be just another armchair QB. Props for putting in the hard work and good luck!

Lou Dawson 2 August 14, 2018 - 12:47 pm

Hey, bring on the QBs! I’m sure it’s helpful for the builder. Lou

Louis Dawson August 14, 2018 - 3:58 pm

Yea I’m all for any advice, keep it coming. The drop floor is going to be a bit different in its final form. Mainly I’m going to replace some of the rope with steel cable. The floor has rubber feet on it. When I’m parked on fairly level ground, the floor will just sit on the ground when it’s in use, so it won’t swing around. Even when I do hang it from the ropes, it doesn’t swing around too much, when it’s cranked up next to the floor (in storage mode) it doesn’t move much at all.

Richard August 14, 2018 - 6:17 pm

Hi Louie

Mr Negativity here–

Myths abound.
“Marine Plywood” The plywood that was sold to you is Ocoume — one of the most rot-prone species of Mahogany. It is pressed together with water resistant glue and is generally free of voids on the interior— not a bad product all in all. But it certainly isn’t suitable for unprotected use in the PNW. At least when I lived there it does rain some times? So as you drive down the first gravel road a weak coating like house paint will be sand blasted off in the first 100 miles. Then while driving down the freeway it will receive a firehouse blast of water that will thoroughly saturate the wood. The rot will probably start where wood meets steel frame.

Bottom line is that the bottom of the plywood floor needs a nice thick layer of fiberglass– Minimum of 10oz woven cloth and epoxy resin to protect against rocks, sand, and moisture.

All fiberglass is not created equal. “Fiberglass” trailer panels are blown out of a a gun using chopped strand and polyester resin. If you want resin to penetrate a wood surface and form a waterproof coating you use epoxy resin. And if you want strength you use woven or unidirectional fiberglass stabilized by resin.

If it were mine I’d unbolt the foam cabin with its floor, lay it on its side, and properly waterproof the exterior of the bottom before doing anything else.

Richard Elder August 14, 2018 - 6:23 pm

Looks like it’s too late because the floor is glued to the frame. A heavy coating of bed liner might do the trick!

Harry August 16, 2018 - 5:25 am

The canvas looks great, but was there a great deal of cost/labor savings over using an EPS compatible epoxy and 3.5oz fiberglass?

Sam August 20, 2018 - 6:54 pm

Having seen how easily and quickly that type of foam burns, I would be worried about fireproofing. Its also highly toxic when it burns…

Louis Dawson August 21, 2018 - 5:15 pm

The foam by itself burns pretty easily. Once it has the canvas/glue/paint coating it gets more fireproof. I’m also going to put a bunch of metal flashing on the interior in the kitchen area.

Lou Dawson 2 August 22, 2018 - 10:03 am

I’ve flame tested this XPS foam as well. It’s perhaps dangerous when unprotected. It behaves much differently than wood, the foam is more of a fire “contributor,” while XPS does burn more readily than some other foams (see videos below), the wood is what seems to keep things going. Once enclosed the XPS behaves quite a bit differently, much less scary. Bear in mind that nearly any commercial “camper” is also made with some sort of at least somewhat flammable foam sandwiched in flammable materials. For example, our slide-in truck camper is all wood and carpet surrounding the kitchen area, nothing fireproof. And the walls are indeed foam sandwich. I’m a big fan of fire proofing the kitchen area, using aluminum or steel flashing metal. I did that in our mountain cabin, and it sounds like Louie will do so in his pull-behind. Escape windows and fire extinguishers are key as well. As is a tool known as the brain.

https://www.youtube.com/watch?v=lpzXogsNACo

https://www.youtube.com/watch?v=VPoY6nsh1Vs

https://www.youtube.com/watch?v=8NC79e0oztM

Lou

Bill b August 22, 2018 - 1:07 pm

Were there any thoughts to using Plyiso Board?
R factors seem to be about the best and comes with a metal skin.

Lou Dawson 2 August 22, 2018 - 1:38 pm

Bill, I’m not familiar with Plyiso, I’ll check it out. One thing everyone should remember about campers and tiny houses, with such small square footage all you really need in the way of insulation is enough to prevent condensation on the walls and ceiling during cold weather. I frequently see tiny house builds, for example, that obsess on insulation that’s clearly overkill. Lou

Lou Dawson 2 August 22, 2018 - 1:41 pm

Bill, oh, “Plyiso Board” is what we’ve always called “Thermax” around here. Some is said to have fire retardant, and the foil skin is a good thing. It’s expensive, and not necessary when buried in a wood frame wall since once a fire starts with the wood, it’ll burn anyway. I’ve tested it. Lou

Jim Milstein August 24, 2018 - 9:40 pm

Do you mean “polyiso” as in polyisocyanurate foam?

Kevin P. August 30, 2018 - 8:45 am

Hey Louie – you’re likely already past this point, but another blog I read is the timeline of a boat build out your way. He’s just putting cabin roof on – similar technique to what you’re using but slightly different materials,… thought you might find it an interesting comparison. Scroll way, way, way to the bottom for roof construction – https://bischoffboatworks.com/bish-the-build/

Lou Dawson 2 August 30, 2018 - 9:54 am

Wow Kevin, thanks for the link! Lou
