Avalanche Airbag Practice Rig — BCA Gets WildSnow Mod Treatment


Post by WildSnow.com blogger | November 27, 2017
The rig, practice airbag supplied with 5 gallon air tank.

Built from a decommissioned BCA 27, practice airbag rucksack is supplied with 5 gallon air tank.

I’m appalled, if not terrified. It’s said that during a significant number of times skiers and riders should pull their airbag trigger — they do not. Why? A variety of reasons. From my observations and experience, a goodly number of these human misfires are caused by hesitation or downright “misses” due to cost of refills, poor habits, lack of practice, difficulty actually grabbing the trigger with gloves and more.

Practice is the solution, but in my view, simply yanking your balloon trigger with little to nothing as a consequence is less than ideal. What’s needed is a cheap easy way to pull that ripcord for full screeching deployment.

Perhaps the best solution is for retailers and educational institutions is to dedicate an electric fan pack for practice. But how about another idea? Enter the WildSnow Airbag Practice Rig, WAPeR for short.

(Please note, BCA backpacks and other fine kit are available from the sponsors of this post, Backcountry Access and Cripple Creek Backcountry).

Design philosophy here is a simple rig that inflates off an easily filled five gallon compressed air tank, requiring only 110 psi produced by a small homeowner type air compressor. The math follows. Goal is five cubic feet of fill, quickly inflating the BCA balloon to about 1 psi above ambient air pressure (that’s where the “15” number comes from).

(110 psi) x (.699 cf, five gallons) /15 = 5.126 cf — works.

In my opinion our cobbled rig functions quite well, though day-to-day use would require a more refined system. Thus, let’s call this a proof-of-concept project. Check it out.

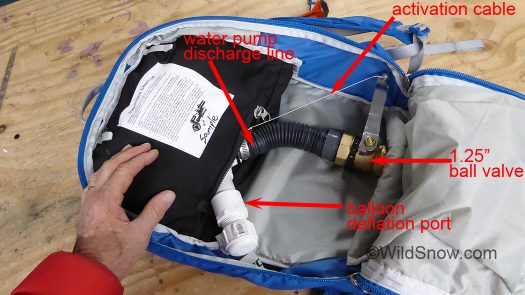

Heart of the matter is 1.25 inch ball valve attached to compressed air tank with 0.5 inch hose.

Heart of the matter is 1.25 inch ball valve attached to compressed air tank with 0.5 inch hose. I experimented with size of feed line, larger can inflate quite fast, around a second, but made a huge amount of noise and seemed unnecessary, this 1/2 inch air line fills the balloon in about four seconds, plenty fast for realism.

Heart of the matter, valve attached to air line coming from 5 gallon tank.

Valve attached to air line coming from 5 gallon tank. As happens with compressed air systems, most of my work involved sealing multiple connections so the supply tank would maintain pressure for lengthy periods, thus eliminating hassle. It keeps a charge overnight now, pretty good.

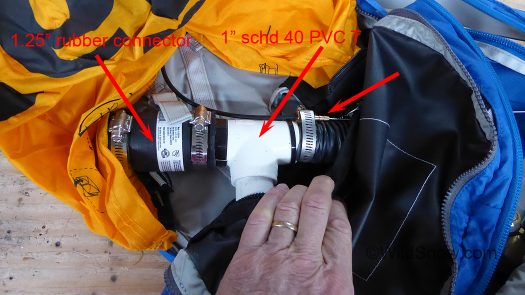

A couple of tricky parts. Plumbing attaches to the balloon via a rubber plumbing connector, white pipe T allows for a deflation port.

A couple of tricky parts. BCA ‘motor’ was removed from the pack, leaving a connector-filler tube attached to the balloon. Plumbing attaches to the balloon filler tube via a rubber plumbing connector. White pipe T allows for a large deflation port (screw cap) that facilitates repacking.

Running a 5 gallon tank at 110 psi is just right.

Running a 5 gallon tank at 110 psi is just right.

Balloon packs as in real life, space taken by BCA motor is used by the plumbing connectors.

Balloon stows as in real life, space taken by BCA motor is used by the plumbing connectors.



IF YOU'RE HAVING TROUBLE VIEWING SITE, TRY WHITELISTING IN YOUR ADBLOCKER, OTHERWISE PLEASE CONTACT US USING MENU ABOVE, OR FACEBOOK.

Comments

5 Responses to “Avalanche Airbag Practice Rig — BCA Gets WildSnow Mod Treatment”

  1. Bruno Schull November 27th, 2017 12:13 pm

    Yeah! You did it! Every shop that sells airbag packs should have something like this. Industry folks, are you listening/reading? In emergency situations, we are so much more likely do what we have practiced! Of course, you could make it smaller, lighter, sleeker, and what not, but, as you said, Lou, it’s a proof of concept.

    Just our of curiosity, is that how slow all airbags fill? I’m assuming it’s close. Is that incorrect? Wow. I would have thought they filled much, much faster. Would a faster inflation make any difference in an avalanche?

    Thanks for keeping attention on this Lou–as much as I love to read cool trip reports, or ski/boot/binding reviews, and as much as I don’t want to spend more money on another piece of equipment, I’m getting closer to an airbag purchase.

  2. Lou Dawson 2 November 27th, 2017 12:36 pm

    Thanks Bruno, glad you enjoyed it. The standard is for the bag to fill in 3 seconds, this one does it in about 4, I could make it faster by using 3/4 inch air hose but that seemed unnecessary, would be heavy and expensive. That said, with the 1/2 inch hose the tank has to have a bit of extra umph to make the fill go fast, which ends up slightly over inflating the bag, luckily it’s strong! I did build a rig that inflated the bag in about a second by attaching a tank directly to the ball valve with 1.25 inch pipe, that was a bit much, loud and scary. Lou
